SceneManager Class Reference

Singleton class to handle scenes and the navigation between them. More...

#include <SceneManager.hpp>

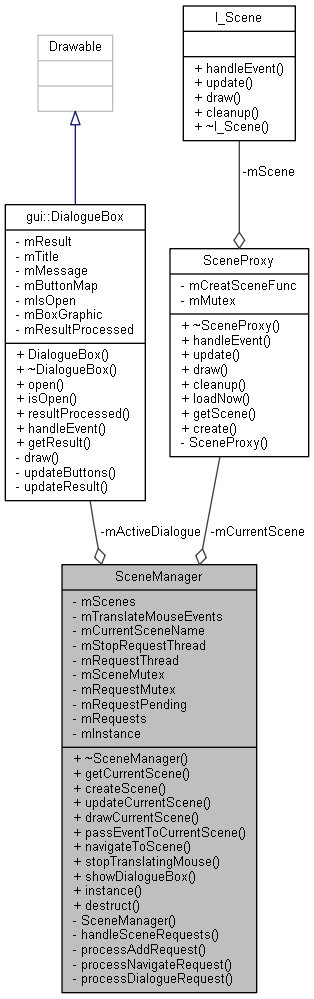

Collaboration diagram for SceneManager:

Public Member Functions
std::string	getCurrentScene ()
template<class SceneType >
void	createScene (std::string const &name, std::string const &xmlPath, bool goToScene=true)
void	updateCurrentScene (sf::Time const &elapsedTime)
void	drawCurrentScene (sf::RenderWindow &w)
bool	passEventToCurrentScene (sf::Event &theEvent)
void	navigateToScene (std::string const &path)
void	stopTranslatingMouse ()
	Stops translating mouse until the scene is changed. Be default, the manager translates mouse posititions from screen coordinates to game coordinates.
void	showDialogueBox (gui::DialogueBox *dialogueBox)

Static Public Member Functions
static std::unique_ptr< SceneManager > const &	instance ()
static void	destruct ()
	Destroys the instance.

Private Member Functions
void	handleSceneRequests ()
	Waits to be notified about a pending scene change, then does cleanup and assignment.
void	processAddRequest (detail::SceneRequest const &request)
	Adds a scene to the map.
void	processNavigateRequest (detail::SceneRequest const &request)
	Transitions to a scene.
void	processDialogueRequest (detail::SceneRequest const &request)
	Show a dialog box on top of the current scene.

Private Attributes
std::map< std::string, std::unique_ptr< SceneProxy > >	mScenes
bool	mTranslateMouseEvents
	True if we should translate mouse positions from screen to game.
gui::DialogueBox *	mActiveDialogue
std::string	mCurrentSceneName
	The current scenes map key.
SceneProxy *	mCurrentScene
std::atomic_bool	mStopRequestThread
	Must be set to true before we try and join switcher thread.
std::thread	mRequestThread
std::mutex	mSceneMutex
	Locked whenever we need to do something involving the current scene.
std::mutex	mRequestMutex
	Locked whenever we need to access the request queue.
std::condition_variable	mRequestPending
	Notified whenever a request is pushed onto the queue.
std::queue< detail::SceneRequest >	mRequests
	Queue of pending requests.

Static Private Attributes
static std::unique_ptr< SceneManager >	mInstance

Detailed Description

Singleton class to handle scenes and the navigation between them.

Member Function Documentation

template<class SceneType >

void SceneManager::createScene	(	std::string const &	name,
		std::string const &	xmlPath,
		bool	goToScene = true
	)

Adds a scene to the map under the specified name.

Parameters

name	The name of the scene (its key in the map)
derivedSceneObject	The scene to be added.
goToScene	True if the new scene should become the current scene (i.e. navigated to immediately)

void SceneManager::drawCurrentScene

(

sf::RenderWindow &

w

)

Calls the current scene's draw method

std::string SceneManager::getCurrentScene

(

)

Gets the name of the current scene (its key in the map of scenes)

Returns

The name of the current scene.

void SceneManager::navigateToScene

(

std::string const &

path

)

Sets the current scene to be path.

Parameters

path	The name of the scene to be navigated to.

Returns

True if the path matched an existing scene.

bool SceneManager::passEventToCurrentScene

(

sf::Event &

theEvent

)

Calls handleEvent on the current scene, passing theEvent.

Parameters

theEvent

The event that will be passes to the current scene.

Returns

True if the event has been processed and no further processing of this event is required. (i.e. event is used up)

void SceneManager::updateCurrentScene

(

sf::Time const &

elapsedTime

)

Calls the current scene's update method.

Member Data Documentation

std::thread SceneManager::mRequestThread

private

Thread for handling scene requests.

See also

handleSceneRequests()

std::map<std::string, std::unique_ptr<SceneProxy> > SceneManager::mScenes

private

A map of all scenes managed by the SceneManager. Each scene is identified by its name.

---

The documentation for this class was generated from the following file:

• include/SceneManager.hpp
