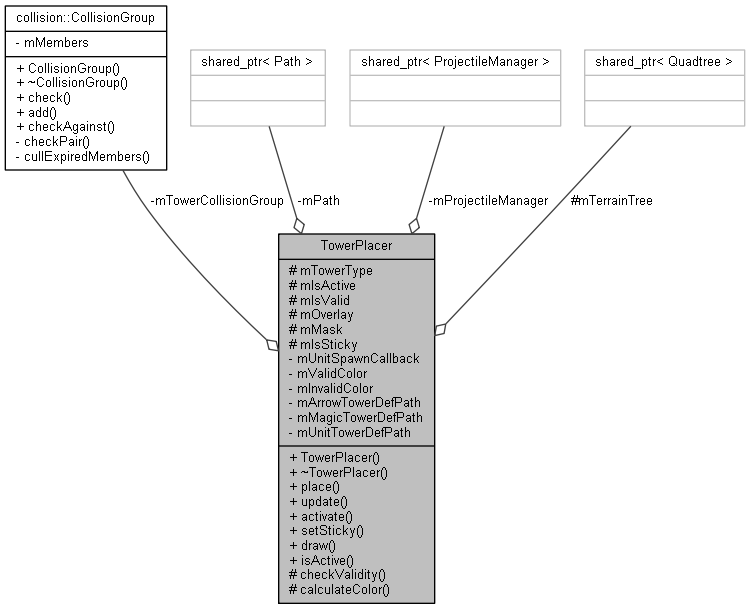

Collaboration diagram for TowerPlacer:

Public Member Functions
	TowerPlacer (shared_ptr< TerrainTree > const &terrainTree, shared_ptr< ProjectileManager > const &projectileMgr, shared_ptr< Path > const &path, std::function< void(shared_ptr< Minion >)> const &unitSpawnCallback)
	Constructs an instance of TowerPlacer. More...

shared_ptr< tower::Tower >	place ()
	If location is valid for tower placement, puts a tower into the container.

virtual void	update (sf::Vector2f const &mousePosition)
	Updates position to match mouse and calculates validity.

void	activate (TowerType type)
	Sets the TowerPlacer to be active. Must be called before update, draw or place do anything. More...

void	setSticky (bool sticky)
	If true, placing a tower will not remove the tower placer form the cursor.

void	draw (sf::RenderTarget &renderTarget) const
	Draws the tower overlay to the render target. More...

bool	isActive () const

Protected Member Functions
virtual void	checkValidity ()
	Checks if the current location is valid for placement.

void	calculateColor ()
	Sets the color of the overlay to red or green depending on validity.

Protected Attributes
TowerType	mTowerType
	The type of tower that will be placed.

bool	mIsActive
	If this is false, calls to methods other than activate() will do nothing.

bool	mIsValid
	True if the current location is valid for tower placement.

shared_ptr< TerrainTree >	mTerrainTree
	The Quadtree<unsigned char> that will be used to check points against terrain for validity.

sf::Sprite	mOverlay
	A ghost tower that show where the tower would be placed and colored to show validity.

sf::Shape *	mMask
	Shape used to test for validity with the terrain tree.

bool	mIsSticky
	If true, placing a tower will not deactivate the placer.

Private Attributes
collision::CollisionGroup	mTowerCollisionGroup
	Used to prevent the player from placing towers on top of each other.

const shared_ptr< ProjectileManager >	mProjectileManager

const shared_ptr< Path >	mPath

const std::function< void(shared_ptr< Minion >)>	mUnitSpawnCallback

Constructor & Destructor Documentation

TowerPlacer::TowerPlacer	(	shared_ptr< TerrainTree > const &	terrainTree,
		shared_ptr< ProjectileManager > const &	projectileMgr,
		shared_ptr< Path > const &	path,
		std::function< void(shared_ptr< Minion >)> const &	unitSpawnCallback
	)

Constructs an instance of TowerPlacer.

Parameters

terrainTree	Quadtree used to determine where is valid for tower placement.
projectileMgr	Shared pointer to a ProjectileManager. Created towers will add their projectiles to this.
path	Path onto which UnitTowers will send their spawned units.
unitSpawnCallback	Given to unit towers so that they can spawn units.

Member Function Documentation

void TowerPlacer::activate ( TowerType type )

Sets the TowerPlacer to be active. Must be called before update, draw or place do anything.

Parameters

type	The type of tower to be placed.

void TowerPlacer::draw ( sf::RenderTarget & renderTarget ) const

Draws the tower overlay to the render target.

The documentation for this class was generated from the following file:
