Base class for all units in the game. If it walks and attacks, it's a Pawn. Walks toward a destination, attacks any hostile pawns it encounters. Dies when health reaches 0. More...

#include <Pawn.hpp>

Inheritance diagram for Pawn:

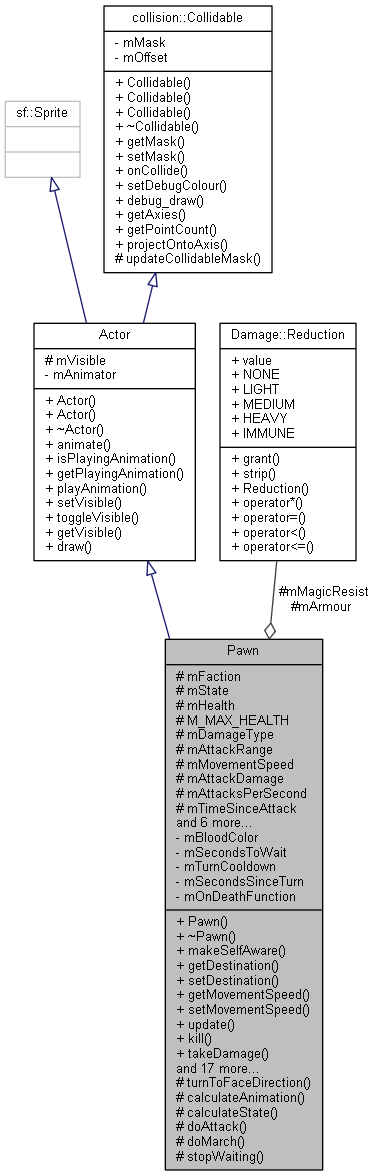

Collaboration diagram for Pawn:

Public Types
enum	Faction { PLAYER, ENEMY, NEUTRAL }

enum	State { IDLE, MARCHING, ATTACKING, STUNNED, DEAD }

Public Member Functions
	Pawn (tinyxml2::XMLElement *xml)
	Constructs a pawn from an xml element. Parses members from child xml tags. Requires child <Actor> tag for base class construction. More...

void	makeSelfAware (std::shared_ptr< Pawn > const &smartThis)

sf::Vector2f	getDestination () const

virtual void	setDestination (sf::Vector2f const &destination)
	Sets the Pawn's destination. More...

int	getMovementSpeed () const

void	setMovementSpeed (int newSpeed)

virtual void	update (sf::Time const &elapsedTime)
	Updates the Pawn. State becomes MARCHING is goal is further than attack range. State becomes ATTACKING if has a target and target is within attack range. Else state become IDLE. More...

void	kill ()
	Kills the Pawn outright. Sets the Pawn's health to 0 and the state to DEAD.

bool	takeDamage (int amount, Damage::Type type)

bool	takeDamage (int amount, Damage::Type type, std::shared_ptr< Pawn > const &sender)
	Same as takeDamage() Used when taking damage from another pawn, so that we can choose to retaliate if we so wish. More...

void	heal (int amount)
	Heals for the specified amount. Heals for the specified amount. Cannot heal beyond max health. More...

void	stun (sf::Time const &duration)
	Get stunned. Become stunned for the specified amount of time. Stuns do not stack. If a subsequant stun is applied, the stun with the longer duration is used. i.e. A stun of 1 second cannot cancel out a 5 second stun, nor does it becoe a 6 second stun. More...

void	beTaunted (std::shared_ptr< Pawn > const &taunter)
	Become forced to attack th taunter. Changes combat target to be the taunter. Has no associated duration so subsequent taunts will override each other. More...

bool	offerTarget (std::shared_ptr< Pawn > const &target)
	Offer a potential target to the Pawn. Offer a target to the Pawn, who then decides whether to accept it or not. More...

bool	targetIsDead () const

void	wait (float seconds)
	Disallows the pawn to march for the specified time. More...

int	getHealth () const

State	getState () const
	Gets the current state of the Pawn. More...

bool	isDead () const

Faction	getFaction () const

void	setOnDeath (std::function< void(Pawn *)> const &callback)

std::weak_ptr< Pawn > const &	getCombatTarget () const

Damage::Reduction const &	getArmour () const

Damage::Reduction const &	getMagicResist () const

sf::Color	getBloodColor () const

virtual void	onCollide (std::shared_ptr< Collidable > &other, sf::Vector2f const &mtv)
	Called whenever the Pawn collides with something. Virtual method that is invoked whenver this Pawn collides with something. Moves the Pawn a portion of the minimum translation vector. More...

Public Member Functions inherited from Actor
	Actor (sf::Texture &texture, sf::Shape *collisionMask, sf::Vector2f const &maskOffset)

	Actor (tinyxml2::XMLElement *xml)

void	animate (sf::Time const &elapsedTime)
	Updates the animator and applies it to ourself.

bool	isPlayingAnimation () const
	Returns true if an animation is currently playing.

std::string	getPlayingAnimation () const
	Gets the name of the playing animation. Undefined behaviour if no animation playing.

void	playAnimation (std::string const &name, bool loop=false)
	Begins playing an animation by name.

void	setVisible (bool isVisible=true)

bool	toggleVisible ()

bool	getVisible () const

virtual void	draw (sf::RenderTarget &target) const

Public Member Functions inherited from collision::Collidable
	Collidable (sf::Shape *mask, sf::Vector2f offset)

	Collidable (Collidable const &other)

	Collidable (tinyxml2::XMLElement *xml)
	Constructs a Collidable from an xml tag. Tag requires pointCoint and type attributes in addition to child tags depending on type specified. More...

const sf::Shape *	getMask () const

void	setMask (sf::Shape *mask, sf::Vector2f offset)

virtual void	onCollide (std::shared_ptr< Collidable > &other, sf::Vector2f const &mtv)
	Called when we collide with something.

void	setDebugColour (sf::Color const &c)

void	debug_draw (sf::RenderTarget &target)

void	getAxies (std::vector< sf::Vector2f > &axiesVector)
	Gets all axies of the mask. Gets all axies of the mask. Currently inefficient due to the fact that it iterates over all points and returns all axies (a duplicate of each axis is included!). More...

size_t	getPointCount () const
	Gets the number of points in the mask. Calls mask->getPoint() and returns the result.

sf::Vector2f	projectOntoAxis (sf::Vector2f &axis) const
	Projects the mask onto an axis. Projects each point of the mask onto an axis and returns the min and max points it covers on that axis. More...

Protected Member Functions
void	turnToFaceDirection (sf::Vector2f const &dir)

virtual void	calculateAnimation ()

virtual void	calculateState (sf::Vector2f const &goalDisplacement)

virtual void	doAttack (float secondsElapsed)

virtual void	doMarch (sf::Vector2f const &goalDisplacement, float secondsElapsed)

void	stopWaiting ()

Protected Member Functions inherited from collision::Collidable
void	updateCollidableMask (sf::Vector2f const &newPosition)
	Updates the position of the mask. Updates the position of the mask to equal newPosition plus the offset. More...

Protected Attributes
Faction	mFaction

State	mState

int	mHealth

const int	M_MAX_HEALTH

Damage::Reduction	mArmour

Damage::Reduction	mMagicResist

Damage::Type	mDamageType

float	mAttackRange

int	mMovementSpeed

int	mAttackDamage

float	mAttacksPerSecond

float	mTimeSinceAttack

std::weak_ptr< Pawn >	mCombatTarget

sf::Time	mStunDuration

sf::Time	mTimeStunned

sf::Vector2f	mDestination

sf::Sound	mAttackSound

std::weak_ptr< Pawn >	self

Protected Attributes inherited from Actor
bool	mVisible

Private Attributes
sf::Color	mBloodColor

float	mSecondsToWait

const float	mTurnCooldown
	The time to wait between flipping the sprite.

float	mSecondsSinceTurn
	How long it has been since the sprite was flipped.

std::function< void(Pawn *)>	mOnDeathFunction

Detailed Description

Base class for all units in the game. If it walks and attacks, it's a Pawn. Walks toward a destination, attacks any hostile pawns it encounters. Dies when health reaches 0.

Constructor & Destructor Documentation

Pawn::Pawn ( tinyxml2::XMLElement * xml )

Constructs a pawn from an xml element. Parses members from child xml tags. Requires child <Actor> tag for base class construction.

Parameters

xml	A <Pawn> xml tag, containing an <Actor> tag and tags for all member variables.

Member Function Documentation

void Pawn::beTaunted ( std::shared_ptr< Pawn > const & taunter )

Become forced to attack th taunter. Changes combat target to be the taunter. Has no associated duration so subsequent taunts will override each other.

Parameters

taunter The new target for this Pawn.

sf::Vector2f Pawn::getDestination ( ) const

Gets the Pawn's destination.

Faction Pawn::getFaction ( ) const

Gets the Pawn's faction. (NEUTRAL, PLAYER, ENEMY)

Returns: Faction enum

State Pawn::getState ( ) const

Gets the current state of the Pawn.

Returns: State enum

void Pawn::heal ( int amount )

Heals for the specified amount. Heals for the specified amount. Cannot heal beyond max health.

Parameters

amount The number of health points to heal for.

bool Pawn::isDead ( ) const

Gets whether the Pawn is dead or not. Does not take into account health, only checks current state.

Returns: True if the Pawn is dead.

bool Pawn::offerTarget ( std::shared_ptr< Pawn > const & target )

Offer a potential target to the Pawn. Offer a target to the Pawn, who then decides whether to accept it or not.

Remarks: Temporary until ChaiScript (target acquisition)

Parameters

target A possible combat target.

Returns: True if the target was accepted.

virtual void Pawn::onCollide	(	std::shared_ptr< Collidable > &	other,
		sf::Vector2f const &	mtv
	)

virtual

Called whenever the Pawn collides with something. Virtual method that is invoked whenver this Pawn collides with something. Moves the Pawn a portion of the minimum translation vector.

Parameters

other	The object we collided with.
mtv	The Minimum Translation Vector for the collision.

virtual void Pawn::setDestination ( sf::Vector2f const & destination )

virtual

Sets the Pawn's destination.

Remarks: Pawns move straight toward their destination.

Parameters

destination The Pawn's new destination.

Reimplemented in Hero.

void Pawn::stun ( sf::Time const & duration )

Get stunned. Become stunned for the specified amount of time. Stuns do not stack. If a subsequant stun is applied, the stun with the longer duration is used. i.e. A stun of 1 second cannot cancel out a 5 second stun, nor does it becoe a 6 second stun.

Parameters

duration The length of the stun.

bool Pawn::takeDamage	(	int	amount,
		Damage::Type	type
	)

Applies damage to the Pawn, taking into account Armour/MagicResist.

Parameters

amount	The amount of damage to take.
type	The type of damage to take.

bool Pawn::takeDamage	(	int	amount,
		Damage::Type	type,
		std::shared_ptr< Pawn > const &	sender
	)

Same as takeDamage() Used when taking damage from another pawn, so that we can choose to retaliate if we so wish.

Parameters

amount	The amount of damage to take.
type	The type of damage to take.
sender	The dealer of damage, the disher of pain.

bool Pawn::targetIsDead ( ) const

Checks if the Pawn's combat target is dead.

Returns: True if target is dead.

virtual void Pawn::update ( sf::Time const & elapsedTime )

virtual

Updates the Pawn. State becomes MARCHING is goal is further than attack range. State becomes ATTACKING if has a target and target is within attack range. Else state become IDLE.

Moves toward goal if MARCHING. Attacks target if ATTACKING, taking into account attacks per second. Does nothing if state is somethig else.

Calls updateCollidableMask with current position at end of method.

Parameters

elapsedTime The amount of time elapsed since last update tick.

Reimplemented in Minion, and Hero.

void Pawn::wait ( float seconds )

Disallows the pawn to march for the specified time.

Parameters

second The number of second to wait.

Member Data Documentation

float Pawn::mAttacksPerSecond

protected

Remarks: 1.0f == 1 attack per second

Faction Pawn::mFaction

protected

The faction that the Pawn belongs to

float Pawn::mTimeSinceAttack

protected

Remarks: 1.0f == 1 second

The documentation for this class was generated from the following file:

include/Pawn.hpp
