Ability Class Reference

Base class for usable abilities or spells. Abilities must be initialized through xml. More...

#include <Ability.hpp>

Inheritance diagram for Ability:

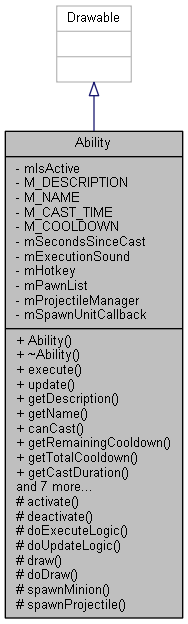

Collaboration diagram for Ability:

Public Member Functions
	Ability (tinyxml2::XMLElement *xml)
	Constructs an Ability from xml. Only description is read from xml in this base class, derived classes will require more. More...
virtual void	execute (Pawn *user)
	Calls doExecuteLogic() if ability has fully cooled since last use. More...
void	update (sf::Time const &elapsedTime)
	Checks if ability is active and does update logic if it is. More...
const std::string &	getDescription () const
	Gets a user-friendly description of the ability, as it might appear in a tooltip, etc. More...
const std::string &	getName () const
	Gets the user-friendly name of the ability. More...
bool	canCast () const
float	getRemainingCooldown () const
	Gets the remaining time, in seconds, before the ability can be used again.
float	getTotalCooldown () const
	The time, in seconds, that the ability's cooldown lasts.
sf::Time const &	getCastDuration () const
bool	isActive () const
	Gets whether the ability has been activated or not. More...
void	setPawnList (std::shared_ptr< const std::list< std::shared_ptr< Pawn >>> const &list)
	Sets the pawn list to be used when the Ability wishes to find pawns in the game. The pawn list cannot be used for directly adding Pawns to the game. More...
void	setProjectileManager (std::shared_ptr< ProjectileManager > const &manager)
	Sets the ProjectileManager to be used when the Ability wishes to add projectiles to the game. More...
void	setSpawnCallback (std::function< void(std::shared_ptr< Minion >)> const &callback)
	Sets the callback used for adding units to the game. Adding a unit to the pawn list won't add flocking or collision, so we've a callback that will. More...
bool	checkHotkey (char key) const
char	getHotkey () const
void	setHotkey (char hotkey)

Protected Member Functions
void	activate ()
void	deactivate ()
virtual void	doExecuteLogic (Pawn *user)=0
virtual void	doUpdateLogic (sf::Time const &deltaTime)=0
	Does everything necessary to update the ability. Only called if the ability is active.
void	draw (sf::RenderTarget &target, sf::RenderStates states) const override final
	Calls doDraw() if ability is active.
virtual void	doDraw (sf::RenderTarget &target, sf::RenderStates states) const =0
void	spawnMinion (std::shared_ptr< Minion > const &pawn) const
	Adds a Pawn to the game. More...
void	spawnProjectile (std::shared_ptr< Projectile > const &projectile) const
	Adds a projectile to the game. More...

Private Attributes
bool	mIsActive
	True if the ability has been activated and should be updated.
const std::string	M_DESCRIPTION
	User-friendly description of ability.
const std::string	M_NAME
	User-friendly name of ability.
const sf::Time	M_CAST_TIME
	Time it takes to use the ability.
const float	M_COOLDOWN
	How many seconds must pass before the ability can be used subsequently.
float	mSecondsSinceCast
	The number of seconds since the ability was last deactivated.
sf::Sound	mExecutionSound
	The sound played when the ability is executed.
char	mHotkey
	Keyboard shortcut to activate this ability.
std::shared_ptr< const std::list< std::shared_ptr< Pawn > > >	mPawnList
std::shared_ptr< ProjectileManager >	mProjectileManager
std::function< void(std::shared_ptr< Minion >)>	mSpawnUnitCallback

Detailed Description

Base class for usable abilities or spells. Abilities must be initialized through xml.

Constructor & Destructor Documentation

Ability::Ability ( tinyxml2::XMLElement *  xml )

explicit

Constructs an Ability from xml. Only description is read from xml in this base class, derived classes will require more.

Parameters

xml	An <Ability> xml tag, containing a tag.

Member Function Documentation

virtual void Ability::doExecuteLogic ( Pawn *  user )

protectedpure virtual

Parameters

user	Pointer to the pawn that used the ability.

Implemented in abilities::MagicMisile, abilities::Heal, and abilities::RaiseDead.

virtual void Ability::execute ( Pawn *  user )

virtual

Calls doExecuteLogic() if ability has fully cooled since last use.

Parameters

user	Raw pointer to user of ability. Can be null.

Remarks

The raw Pawn pointer is not intended to be stored.

See also

doUpdateLogic()

M_COOLDOWN

const std::string& Ability::getDescription

(

)

const

Gets a user-friendly description of the ability, as it might appear in a tooltip, etc.

Returns

The ability's decription.

const std::string& Ability::getName

(

)

const

Gets the user-friendly name of the ability.

Returns

The ability's name.

bool Ability::isActive

(

)

const

Gets whether the ability has been activated or not.

Returns

True if the ability has been actived (execute() has been called).

void Ability::setPawnList

(

std::shared_ptr< const std::list< std::shared_ptr< Pawn >>> const &

list

)

Sets the pawn list to be used when the Ability wishes to find pawns in the game. The pawn list cannot be used for directly adding Pawns to the game.

Parameters

list	Shared pointer to a list of shared pawns.

void Ability::setProjectileManager

(

std::shared_ptr< ProjectileManager > const &

manager

)

Sets the ProjectileManager to be used when the Ability wishes to add projectiles to the game.

Parameters

manager

Shared pointer to a ProjectileManager, the Ability can give projectiles to this.

void Ability::setSpawnCallback

(

std::function< void(std::shared_ptr< Minion >)> const &

callback

)

Sets the callback used for adding units to the game. Adding a unit to the pawn list won't add flocking or collision, so we've a callback that will.

Parameters

callback

The function called when an ability want to spawn a unit.

void Ability::spawnMinion ( std::shared_ptr< Minion > const &  pawn ) const

protected

Adds a Pawn to the game.

Parameters

pawn	The Pawn to push into the list.

See also

Level.hpp

void Ability::spawnProjectile ( std::shared_ptr< Projectile > const &  projectile ) const

protected

Adds a projectile to the game.

Parameters

projectile

The projectile to give to the ProjectileManager.

void Ability::update

(

sf::Time const &

elapsedTime

)

Checks if ability is active and does update logic if it is.

Parameters

elapsedTime

The amount of time since the last update.

---

The documentation for this class was generated from the following file:

• include/Abilities/Ability.hpp
