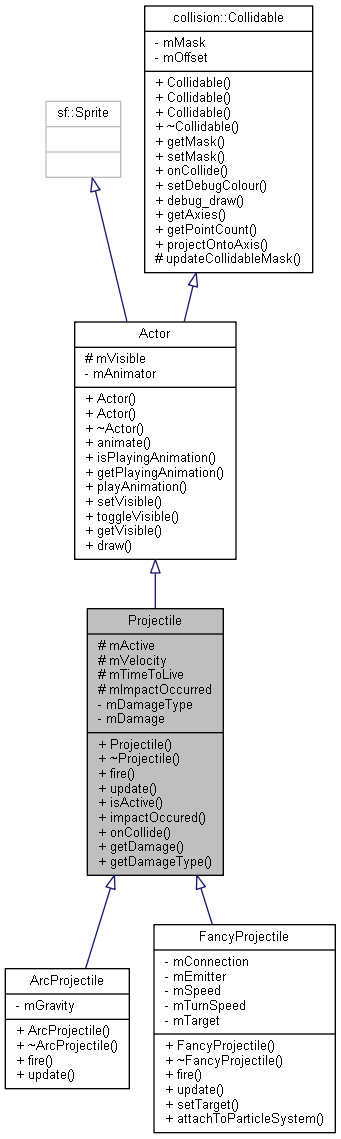

Inheritance diagram for Projectile:

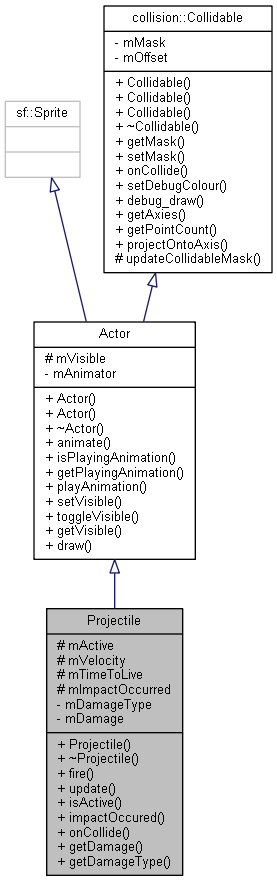

Collaboration diagram for Projectile:

Public Member Functions
	Projectile (int damage, Damage::Type damageType, sf::Texture &texture, int impactRadius=10)

virtual void	fire (sf::Vector2f const &from, sf::Vector2f const &to, float ttl)=0

virtual void	update (sf::Time const &elapsedTime)=0

bool	isActive () const

bool	impactOccured () const

virtual void	onCollide (std::shared_ptr< Collidable > &other, sf::Vector2f const &mtv) override

int	getDamage () const

Damage::Type	getDamageType () const

Public Member Functions inherited from Actor
	Actor (sf::Texture &texture, sf::Shape *collisionMask, sf::Vector2f const &maskOffset)

	Actor (tinyxml2::XMLElement *xml)

void	animate (sf::Time const &elapsedTime)
	Updates the animator and applies it to ourself.

bool	isPlayingAnimation () const
	Returns true if an animation is currently playing.

std::string	getPlayingAnimation () const
	Gets the name of the playing animation. Undefined behaviour if no animation playing.

void	playAnimation (std::string const &name, bool loop=false)
	Begins playing an animation by name.

void	setVisible (bool isVisible=true)

bool	toggleVisible ()

bool	getVisible () const

virtual void	draw (sf::RenderTarget &target) const

Public Member Functions inherited from collision::Collidable
	Collidable (sf::Shape *mask, sf::Vector2f offset)

	Collidable (Collidable const &other)

	Collidable (tinyxml2::XMLElement *xml)
	Constructs a Collidable from an xml tag. Tag requires pointCoint and type attributes in addition to child tags depending on type specified. More...

const sf::Shape *	getMask () const

void	setMask (sf::Shape *mask, sf::Vector2f offset)

virtual void	onCollide (std::shared_ptr< Collidable > &other, sf::Vector2f const &mtv)
	Called when we collide with something.

void	setDebugColour (sf::Color const &c)

void	debug_draw (sf::RenderTarget &target)

void	getAxies (std::vector< sf::Vector2f > &axiesVector)
	Gets all axies of the mask. Gets all axies of the mask. Currently inefficient due to the fact that it iterates over all points and returns all axies (a duplicate of each axis is included!). More...

size_t	getPointCount () const
	Gets the number of points in the mask. Calls mask->getPoint() and returns the result.

sf::Vector2f	projectOntoAxis (sf::Vector2f &axis) const
	Projects the mask onto an axis. Projects each point of the mask onto an axis and returns the min and max points it covers on that axis. More...

Protected Attributes
bool	mActive

sf::Vector2f	mVelocity

float	mTimeToLive

bool	mImpactOccurred

Protected Attributes inherited from Actor
bool	mVisible

Private Attributes
const Damage::Type	mDamageType

const int	mDamage

Additional Inherited Members
Protected Member Functions inherited from collision::Collidable
void	updateCollidableMask (sf::Vector2f const &newPosition)
	Updates the position of the mask. Updates the position of the mask to equal newPosition plus the offset. More...

Member Function Documentation

virtual void Projectile::fire	(	sf::Vector2f const &	from,
		sf::Vector2f const &	to,
		float	ttl
	)

pure virtual

Parameters

from	The location to fire from.
to	The destination of the projectile.
flightTimeSeconds	How much time the projectile should take to reach its destination.

Implemented in FancyProjectile, and ArcProjectile.

The documentation for this class was generated from the following file:

include/Projectile.h
